Fully Automatic High Pressure Steam Sterilizer

EIMJ-54A
EIMJ-78A
EIMJ-65A
EIMJ-85A
EIMJ-100A
EIMJ-120A

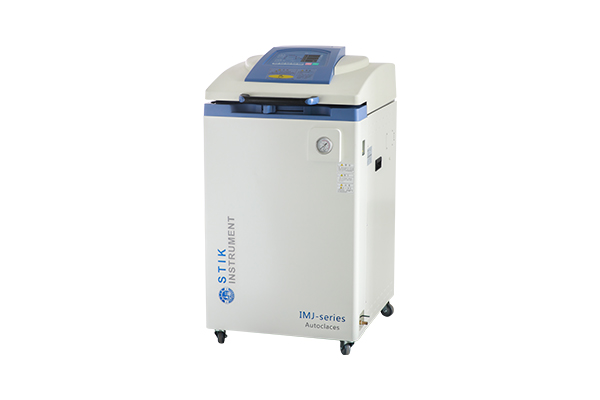

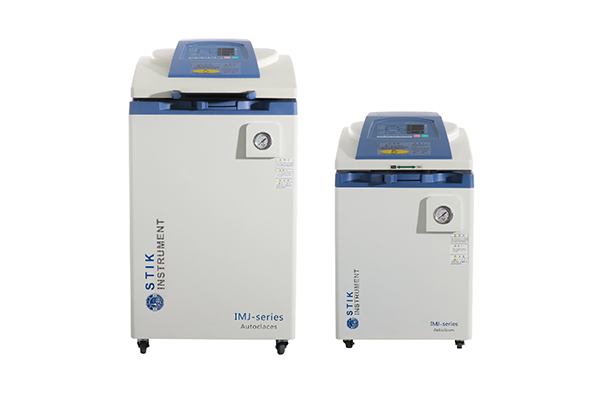

Fully automatic high pressure steam sterilizer IMJ series
AUTO CLAVE
1. External detachable pressure gauge for easy verification
2. USB as standard
3. Features
-The sterilization temperature can be set up to 138 degrees
-Using PT1000 sensor, the temperature control is more accurate, and the display accuracy is 0.1 degrees
-Two water level monitoring functions of electronic water level sensor and temperature water level sensor
-With 5-level password setting function, it can be used for data traceability in pharmaceutical factories, in line with GMP and FDA certification requirements, and can print F0 value
-Mobile SMS alarm (optional)
-Configurable negative pressure to a maximum display of 0.5 pressure gauge, overcurrent, short circuit protection system.
-Standard optimization to prevent dry burning function, overtemperature protection system, overpressure protection safety valve.
-Open the lid to stop heating function
-Real-time data storage function, memory storage of 60 programs, programmable sterilization programs of various modes
-Voice prompt function
-After the sterilization is completed, the exhaust valve can exhaust steam according to the set six-level exhaust speed, and the exhaust speed can be manually adjusted at any time during the exhaust process.
---Freertos embedded operating system
-Standard USB real-time data recording and downloading function
-Log function (touch screen)
-Automatic fault monitoring, alarm and recording function (touch screen), anti-scalding safety protection.
-With automatic detection, check and compare the functional relationship between temperature and pressure to ensure the true saturated steam state
-Automatically detect cold air discharge to ensure steam internal discharge function and pollution-free environment
-Boiling point temperature can be set according to altitude
-Exhaust temperature can be adjusted within 0~25 degrees of boiling point temperature
-Dual temperature sensor, can detect air temperature and water temperature
-1 item sensor hole on the pot lid and two verification holes reserved on the tank body for easy verification connection
-Self-sensing pressure interlock device closed cover inspection system, leakage protection device
4. Large diameter, large capacity, dry, automatic water replenishment sterilizer
Product features
Inner tank diameter 450
Volume 65L / 85L/100L/120L
Inner exhaust: After cooling, steam is discharged through a professional condenser to achieve true inner exhaust and eliminate environmental pollution
Cooling fan: Automatically starts after sterilization, and the optimized three-dimensional condensing fan blows air to the entire inner tank to shorten the cooling time
Automatic water replenishment: The water level sensor detects low water level and can automatically replenish water
Drying function: After the sterilization is completed, the internal pressure is drained and the cavity is heated and dried through the external heating mode
Easy to operate:
Display accuracy: 0.1 Graphic display of the sterilization stage, the humidity can be adjusted according to customer needs below 95℃ when the lid is opened
Inner tank Electrochemical polishing: Electrochemical polishing is performed after sandblasting the inner tank to reduce the area of bacterial adhesion, prevent dirt residue, and facilitate user cleaning and maintenance
Dry burning protection: Standard low water level sensor and heating rate software program to effectively prevent dry burning
High efficiency filter: Equipped with 0.2um HEPA high-quality filter, with bacteria filtering function, truly achieving zero pollution
5. Many advantages Sterilization is safer and more thorough
The starting pressure of the safety valve is 0.28Mpa, and the designed maximum pressure is 0.35Mpa
STIK provides you with high-quality sterilizers, always adhering to the principle of "safety first" /Safety Guaranteed Anytime
Safety
Pressure interlocking mechanism
-Start the machine, sterilization starts, and the micro-position switch monitors the position of the interlocking mechanism in real time during the sterilization process. Once there is an abnormal alarm, it will stop to ensure safety.
-As long as there is pressure in the cavity (with pressure sensor), the lid cannot be opened.
-The lid cannot be opened when the power is suddenly cut off during the sterilization process.
After the sterilization is completed, the lid opening temperature can be set arbitrarily within the range of the cavity temperature below 95℃.
-Double overpressure protection
-Double overtemperature protection
-Double exhaust solenoid valve
-Prevent dry burning
-Pressure sensor
-Leakage protector
-Fully automatic intelligent control system
Option
-Printer (print content: pressure in the sterilizer, sterilization temperature and time)
-Item sensor
×
