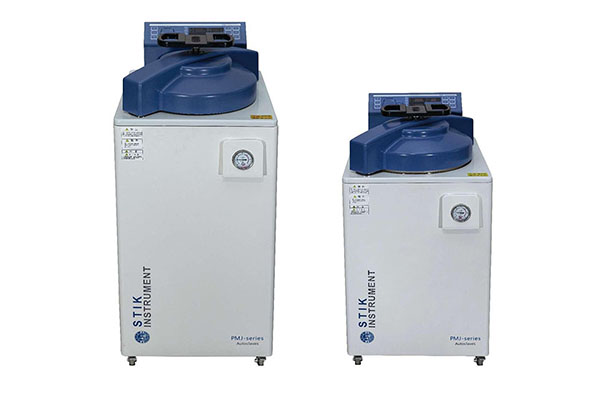

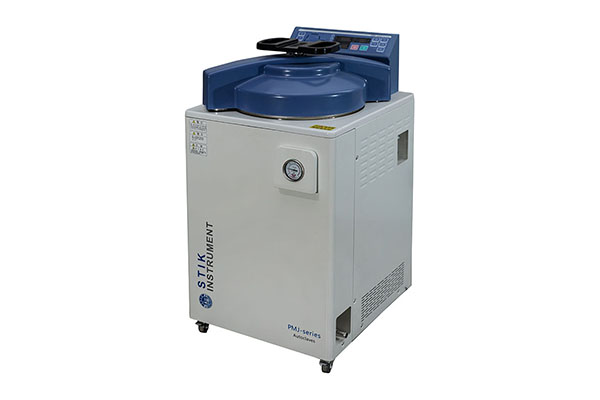

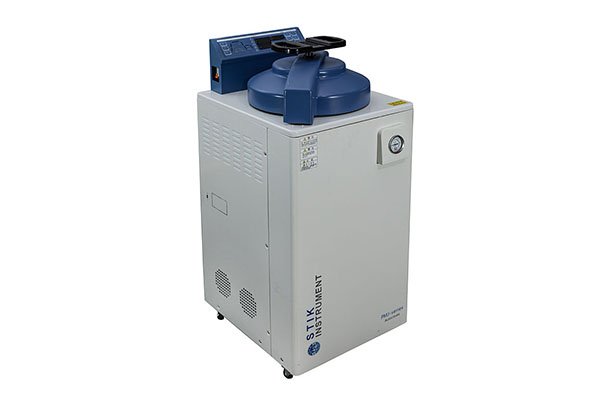

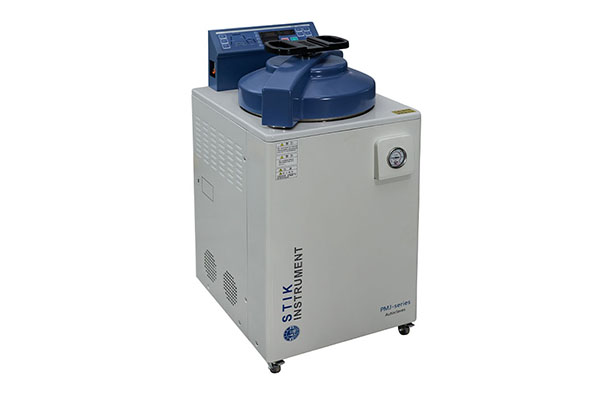

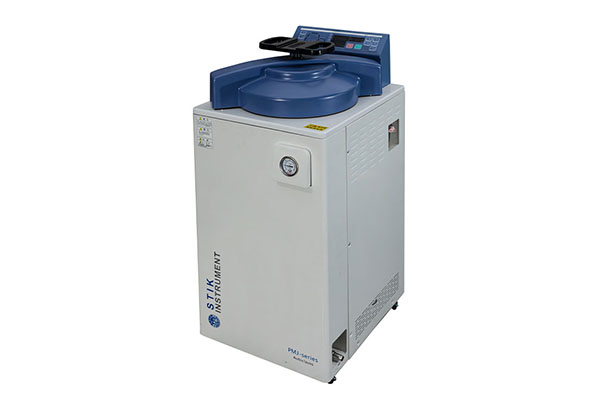

Manual high pressure steam sterilizer PMJ series 1. External detachable pressure gauge for easy verification. 2. USB as standard. 3. Features. -The sterilization temperature can be set up to 138 degrees. -PT1000 sensor is used for more accurate temperature control and display accuracy of 0.1 degrees. -Standard dual-electrode water level sensor for real-time water level monitoring. -With 5-level password setting function (optional), it can be used for data traceability in pharmaceutical factories, meets GMP and FDA certification requirements, and can print F0 value. -Mobile SMS alarm (optional). -The pressure gauge with negative pressure up to 0.5 can be configured, overcurrent, short circuit protection system. -Standard optimization to prevent dry burning function, overtemperature protection system, overpressure protection safety valve. -Open the cover to stop heating function. -Real-time data storage function, memory storage of 20 programs, programmable sterilization programs of various modes. -After the sterilization is completed, the exhaust valve can exhaust steam according to the set ten-level exhaust speed, and the exhaust speed can be manually adjusted at any time during the exhaust process. ---Freertos embedded operating system. -Standard USB real-time data recording function. -Automatic fault monitoring, alarm and recording functions (optional printer required), anti-scalding safety protection. -With automatic detection, verification and comparison of the functional relationship between temperature and pressure to ensure the true saturated steam state. -Automatic detection of cold air discharge to ensure steam internal discharge function and pollution-free environment. -Boiling point temperature can be set according to altitude. -Exhaust temperature can be adjusted within 0~25 degrees of boiling point temperature. -Dual temperature sensor, can detect air temperature and water temperature. -One item sensor hole on the pot lid and two verification holes reserved on the tank body for easy verification connection. -Self-sensing pressure interlock device, lid closing inspection system, leakage protection device. Product features Inner pot diameter 370/400 (110 liters). Volume 50L / 65L/85L/110L. Internal exhaust (optional model): After cooling, the steam is discharged through a professional condenser to achieve true internal exhaust and eliminate environmental pollution. Drying function (optional model): After the sterilization is completed, the internal pressure is discharged and the external heating mode of the cavity is used for heating and drying. Cooling fan: It starts automatically after sterilization, and the optimized three-dimensional condensing fan blows air to the entire inner tank to shorten the cooling time. Display temperature accuracy: 0.1 degrees. Graphic display of the sterilization stage makes it easy to view the sterilization process. Inner tank polishing: Inner tank polishing reduces the area of bacterial attachment and prevents Dirt residue, convenient for users to clean and maintain. Dry burning protection: standard dual-electrode low water level sensor and heating rate software program, double over-temperature protection, effectively prevent dry burning. Optional high-efficiency filter: equipped with 0.2um HEPA high-quality filter, with bacteria filtering function, truly achieve zero pollution. The starting pressure of the safety valve is 0.28Mpa. The maximum design pressure of the sterilizer is 0.3Mpa. Pressure interlocking mechanism. -Start the machine, sterilization starts, and the micro-position switch monitors the position of the interlocking mechanism in real time during the sterilization process. Once there is an abnormal alarm, it will stop to ensure safety. -As long as the lid opening knob is rotated during the sterilization process, the sterilizer will automatically alarm and stop. -The lid is not covered properly. As long as the lid beam is moved during the sterilization process, the sterilizer will automatically alarm and stop. -The specially designed beam locking mechanism ensures that the lid cannot be opened during the sterilization process, which is safer and more reliable. After the sterilization is completed, the temperature in the cavity is lower than the 95℃ range, and the lid opening temperature can be set arbitrarily. -Double overpressure protection. -Double overtemperature protection. -Double limit protection. -Prevent dry burning. -Pressure sensor. -Leakage protector. -Fully automatic intelligent control system. Optional parts (option). -Printer (printed content: pressure in the sterilization pot, sterilization temperature and time). -Item sensor.
